PRODUCTS

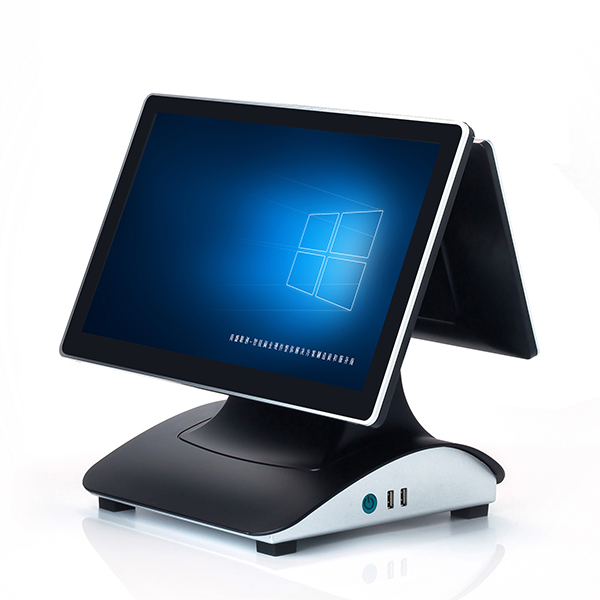

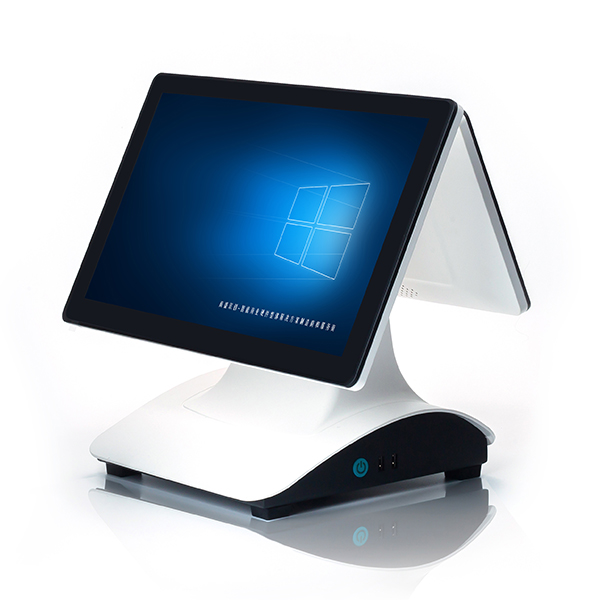

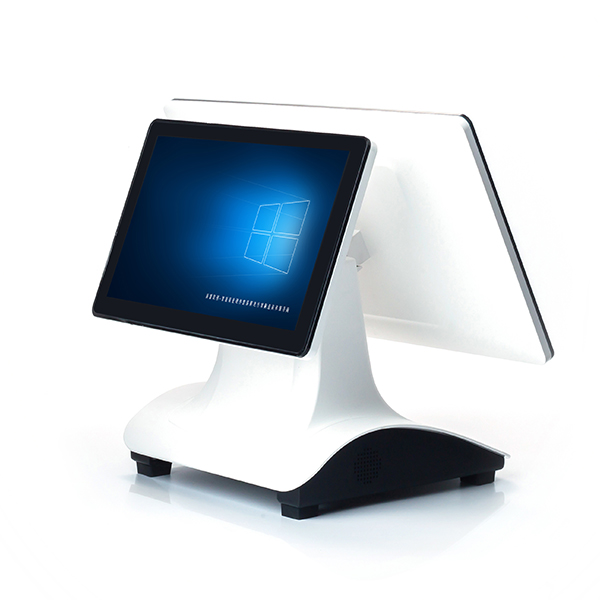

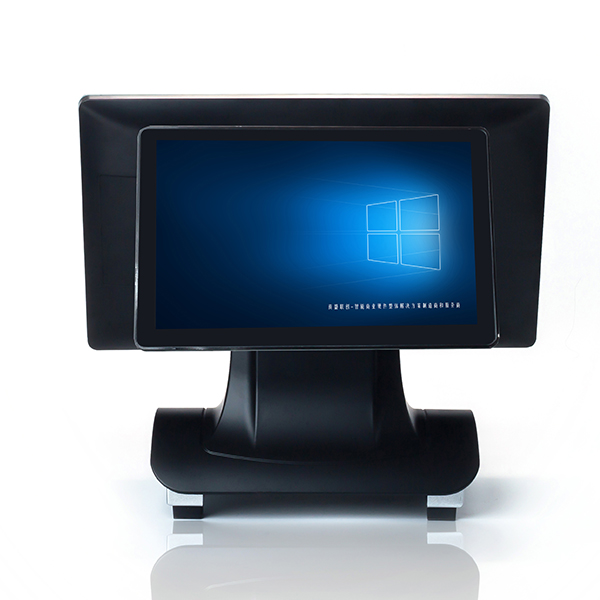

15.6” +11.6" LED Touch Screen
Windows/Android OS
1. Flat 10-Point Capacitive Touch Panel, 15.6"+11.6"
2. Refined Aesthetic Appearance, easily use, quickly cash collection
3. Support OEM/ODM service
4. Use 100% brand new motherboard, run fast
| Item # | SP08B | |
| Mother Board | Industrial grade motherboard J1800 (Upgrade optional for J1900 / i3 / i5 ) | |
| CPU | Intel celeron J1800 dual-core 2.41GHZ (Upgrade optional for CPU J1900 / i3 / i5) | |
| OS | Android / Windows | |
| Memory | Android: 2G/4G/8G | |
| Windows: DDR3 2G/4G/8G | ||
| Hard Disk | SSD 32GB/64GB/128GB/256GB | |
| Touch Screen | Capacitive touch screen | |
| Display Screen | Double screen,15.6 inch + 11.6 inch | |
| Customer Display | 11.6 inch touch screen | |
| Resolution Ratio | 1366*768 / 1920*1080 | |
| Color | Black/White | |
| Power Supply | Input: 110-240V，AC/50-60Hz/1.0A | |
| Output: 12V,5A | ||
| Interface | 6×USB | |
| 1× RJ45 LAN | ||
| 1×RS232 COM | ||
| 1×RJ12 Cash drawer port | ||
| 1×DC port | ||
| 1× Audio output | ||
| 1×Display port | ||
| Wifi and Bluetooth optional | ||
| Work Environment | 0℃~40℃ | |
| Storage Environment | -20℃~60℃ | |
| Size | L×W×H: 39×25.5×32.5cm | |
| Weight | 4.4KG | |
We will contact you as soon as possible!
1. Metal housing2. Metal front panel3. Adjustable coin and bill dividers4. Removable coin tray5. 3-position drawer Lock6. Micro Switch / Sensor7. Compulsory Switch
1. High environmental adaptability2. Support 10 / 100m ethernet port and wifi/3G/4G3. A variety of encryption methods4. Simple setting methods，easy to use
1. Adopt high grade quality print head, printing clearly2. Fast printing speed3.
1. Powerfull performance,with auto cutter and paper out detection2. Easy paper loading design, easy to use3. Multiple connections : USB,Serial, Ethernet interface three in one4.250mm/s high printing speed5.Large cache6.Support multi language options
1、All in one integrated design2、58mm / 80mm inbuilt high speed thermal printer3、Support Windows /Android OS4、Operate display: 15.6”+15.6" LED Touch Screen5、Built-in high-power speakers6、Steady scale body，compatible with all the POS software
1、All in one integrated design2、58mm / 80mm inbuilt high speed thermal printer3、Support Windows /Android OS4、Operate display: 15.6”+11.6“ LED touch screen
