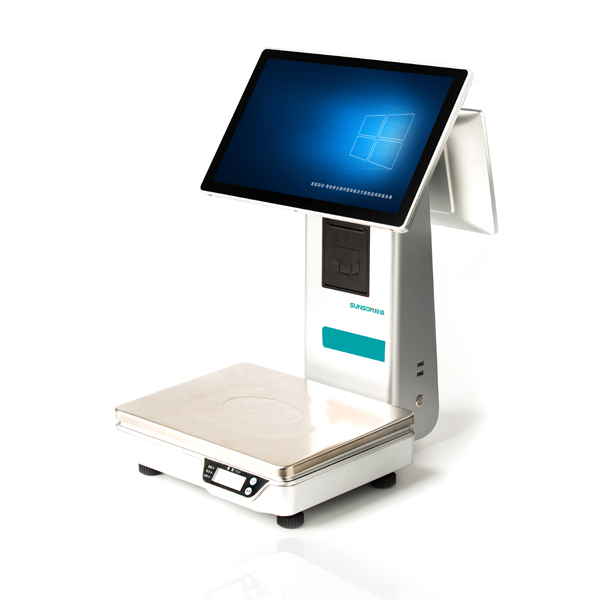

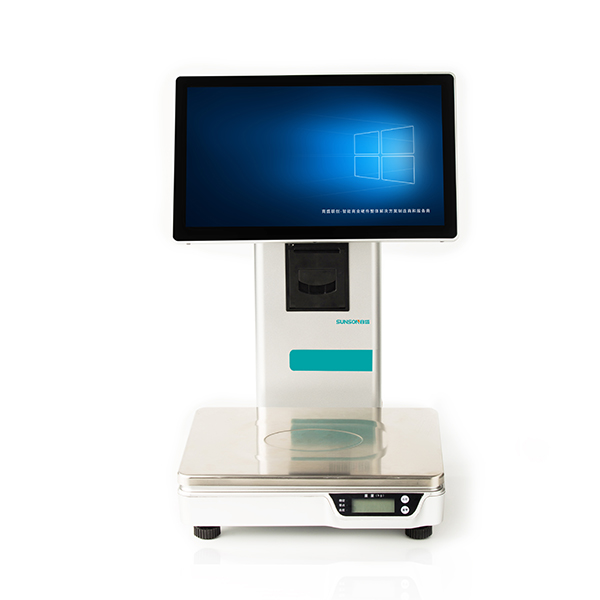

Double Screen 15.6"+11.6"
58mm/80mm Inbuilt Thermal Printer
1、All in one integrated design
2、58mm / 80mm inbuilt high speed thermal printer
3、Support Windows / Android OS
4、Operate display: 15.6” +11.6“ LED touch screen
| Item # | SS01B | ||
| Mainboard | Industrail Grade POS dedicated motherboard | ||
| CPU | Intel Bay Trail J1800 dual core 2.41GHz/J1900/i3/i5 | RK3288 Quad-CoreCortex-A17，The main frequency is up to 1.8GHz | |
| Memory | DDRIII 2GB(Optional 4G/8G) | 2G RAM(Optional 4G) | |
| SSD | 32G(Optional 64G/128G/256G) | 8G ROM(Optional 16G) | |
| OS | Windows7/Windows10 | Android7.1 | |
| Display | Operate display | 15.6"standard 1366*768（Optional 1920*1080） | |
| G+G structure capacitive multi-touch screen | |||
| Customer display | 11.6" | ||
| I/O port | 6*US B2*RS232 Serial Port 1* Rj45 Ethernet Port 1*Cash Drawer Port RJ12 1*DC Port 1* Audio Port | 6*USB 2*RJ11 Serial Port 1*Rj45 Ethernet Port 1* RJ12 Cash Drawer Port WIFI Bluetooth 4.0 | |
| Printer | 80mm thermal printer with cutter/58mm thermal printer with cutter and big gear | ||
| Scanner | Embedded two-dimensional scanning module | ||

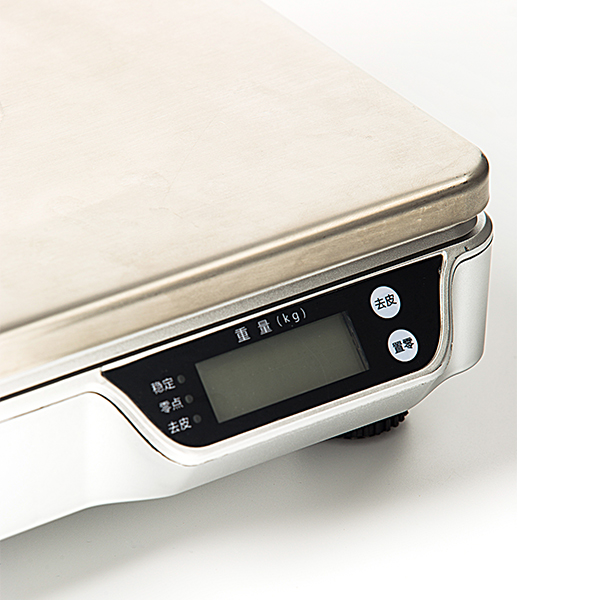

| Weighing platform | Max Capacity: 15kg | ||
| Min Capacity: 40g | |||
| Interval(e): 2/5g | |||
| Power supply | Input：100-240V~50/60Hz 1.6A MAX | ||
| Output：12V 7.5A | |||
| Mea | （L×W×H）34cm×41cm×57cm | ||
